Induction screw heater 1.5KW with spirals

Applicable in the automotive, railway and shipbuilding industries, metalworking and maintenance
Applicable in areas where speed and flexibility are required and there is a risk of damage by open flame around hot parts (upholstery, rubber sleeves, electrical wiring, etc.)
Makes it easier to remove rusted screws and old parts, preheat exhaust pipes, screws, nuts, bearings, tools before hardening, gluing, soldering and is perfect for defrosting
Voltage 220V, 50 Hz
Power cord 3 m
Coil heater cord 0.7 m
Power 1.5 kW / 3.2 kVA
Consumption 8 A
Do not exceed the duty cycle DHI-15 – 2 minutes heating (on) and 2 minutes cooling (off)
Protection code IP20
Operating frequency 25 - 60 kHz, automatic adjustment
Protection class I
Fan cooling
LED lighting in front of the induction coil
PF (power factor) 0.99 (PFC)
Protection against overheating and overload and coil short circuit
Heating without flame and sparks
Dimensions 200 x 140 x 75 mm

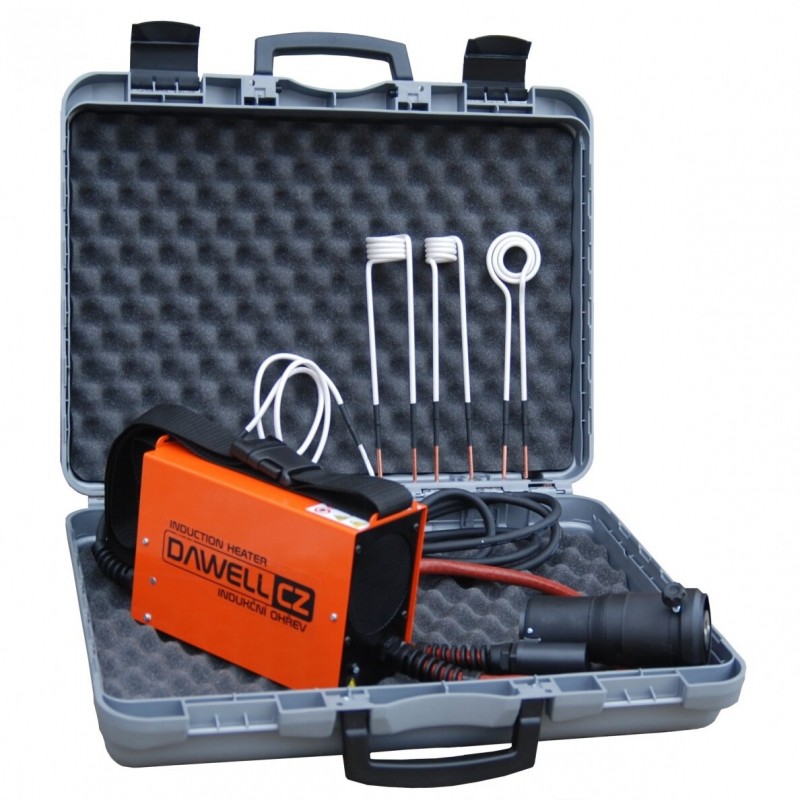

Set includes 4 pcs. heating coils (1 pc. flexible, 1 pc. flat and 2 pcs. straight 19 mm (M8), 26 mm (M12)
Weight 4.5 kg
12 months warranty

Extension cables – if necessary, you can use only the following extension cables:
up to 5 m with a diameter of 2.5 mm2
up to 15 m with a diameter of 4 mm2
When using the device with an alternative power source – e.g. using a mobile electric generator, it is necessary to use a quality device
Use a generator with a power of at least 3-4 kW, or a DC/AC converter with a power of 2-3 kW and only with a sine wave – do not use a converter with a square or quasi-sine wave
If you do not comply with the above requirements, the device may be damaged and the warranty will be void
