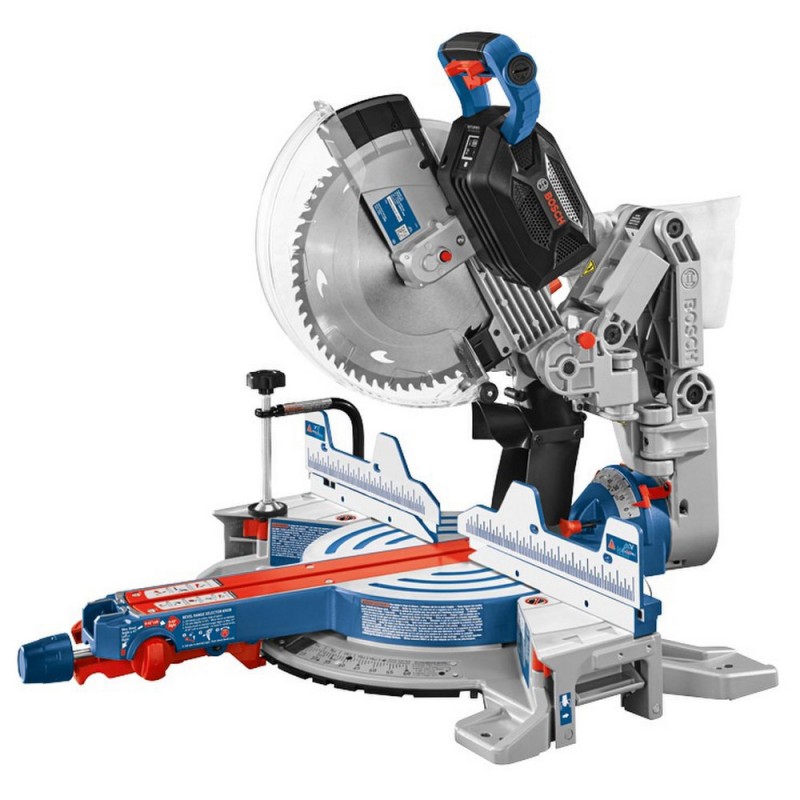

Cross cutting machine GCM 10 GDJ BOSCH

Always the right cut: modern design and impressive performance in one saw
The Bosch Axial-Glide™ system ensures proper precision, while the powerful and robust 2000 W motor with motor brake ensures safe and efficient work. Safe and convenient: The bevel controls on the top front ensure quick and easy adjustments without having to dangerously reach behind the saw. The saw socket can be locked in the cutting position to ensure maximum cutting capacity. TECHNICAL DATA
Key data
Dimensions of the workpiece to be cut at 0°
80 x 306 mm
Dimensions of the workpiece to be cut 45° in. cut hor. plan.
80 x 216 mm
Dimensions of the workpiece to be cut 45° inset cut vert. width
54 x 296 mm
Adjust the angle of the bevel cut in the horizontal plane
47°N / 47°S
Adjust the angle of the bevel cut in the plane of the translation
52°N / 60°S
Tool dimensions (width x length x height)
813 x673 x521 mm
Idle speed*
5,000 rpm
Saw blade diameter
254 mm
Saw blade hole Ø
30 mm
Mass*
29 kg
Rated input power
2,000W
Show more
GCM 10 GDJ PROFESSIONAL: MORE INFORMATION
Product Features
The GCM 10 GDJ Professional mitre saw combines top-level performance with state-of-the-art design features. The Bosch Axial-Glide™ system ensures high precision and smooth gliding motion even in confined spaces. Safe and convenient: the bevel controls on the top front ensure quick and easy adjustment without having to dangerously reach behind the saw. The saw socket can be locked in the cutting position for maximum performance when making crosscuts. Ideal for use in hard and soft wood, composite wood, MDF boards as well as sawn and glued timber, this saw is the perfect choice for all cutting tasks in joinery, renovation, window installation and cabinetry. The saw is compatible with the following Bosch stands: GTA 2500 Compact, GTA 2500 W, GTA 2600 and GTA 380
Equipment and application
The GCM 10 GDJ Professional also has a large, clearly visible angle and inclination scale, fences and milled angles for optimal material support.
